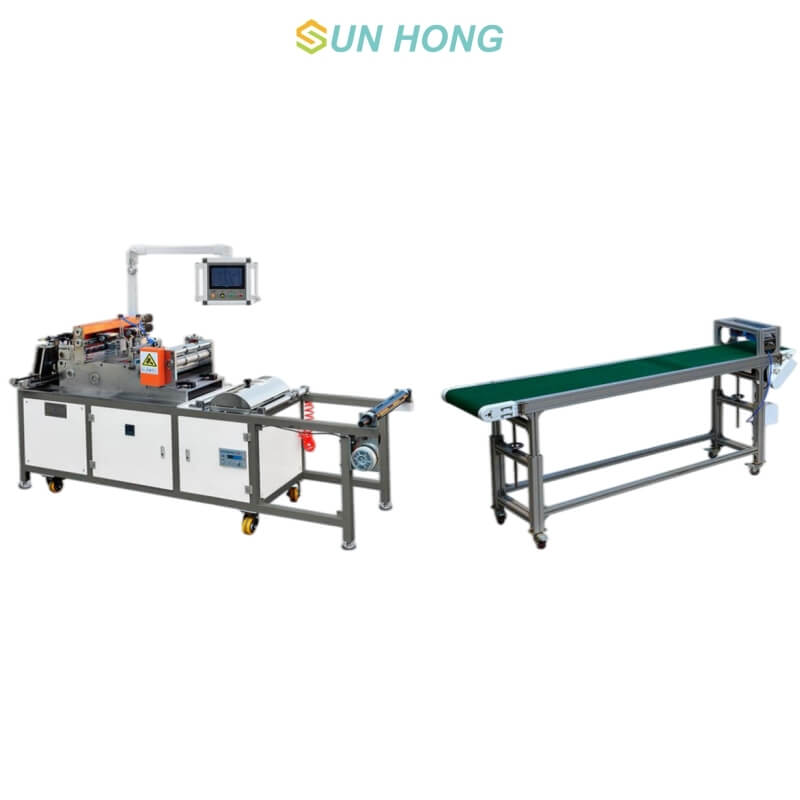

PU Panel Air Filter Paper Pleating Machine

What is a PU Panel Air Filter Pleating Machine?

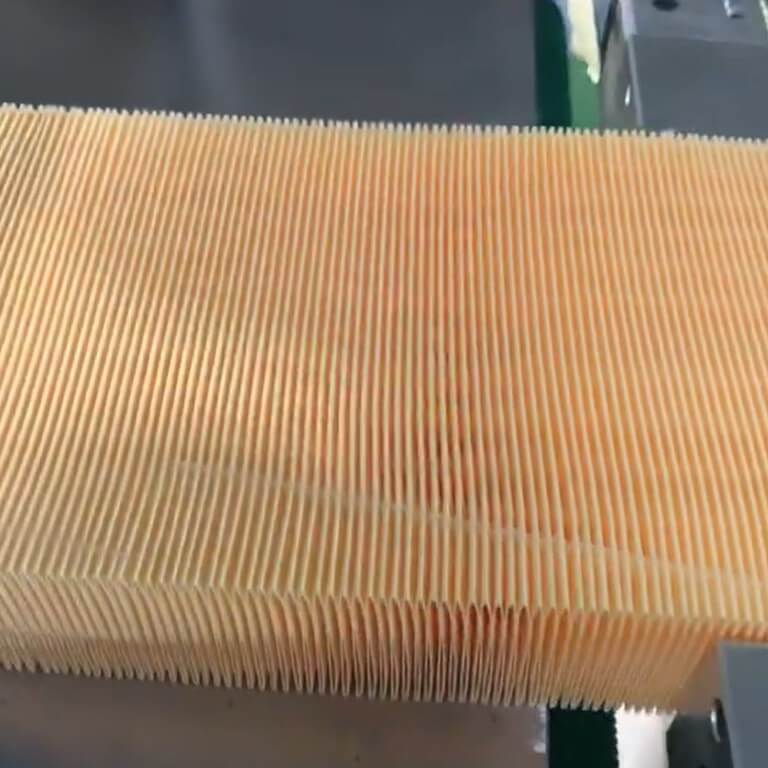

This air filter pleating machine is specifically designed for folding air filter paper and is the core equipment for producing panel air filter elements. This air filter pleating machine precisely folds the filter material into continuous, uniform wavy pleats. Then, after further gluing and sealing, a sturdy panel is formed.

Application of PU Panel Air Filter Pleating Machine

The PU panel air filter pleating machine is suitable for family car air filter origami process, ensure lossless processing of filter paper and achieve the best filtering effect.

Main Component of PU Panel Air Filter Pleating Machine

Automatic paper feeding, magnetic powder motor trans-port filter paper;

Pneumatic slitting;

Humidification, receiving paper, glue molding;

Filter paper indentation, filter paper traction, filter paperdelivery after folding;

Automatic counting and counting;

Touch screen, PLC control;

Double rubber hose, double rubber head gluing machine;

Cooling transport.

Main Features of PU Panel Air Filter Pleating Machine

• Automatic paper loading, inflating shaft fixed paper, smooth transfer of filter paper.

• Pneumatic slitting with scale display.

• Touch screen operation, automatic adjustment of the wheel position, automatic transferof filter paper.

• Humidification can soften the paper, and the paper will not be damaged after being in-dentation.

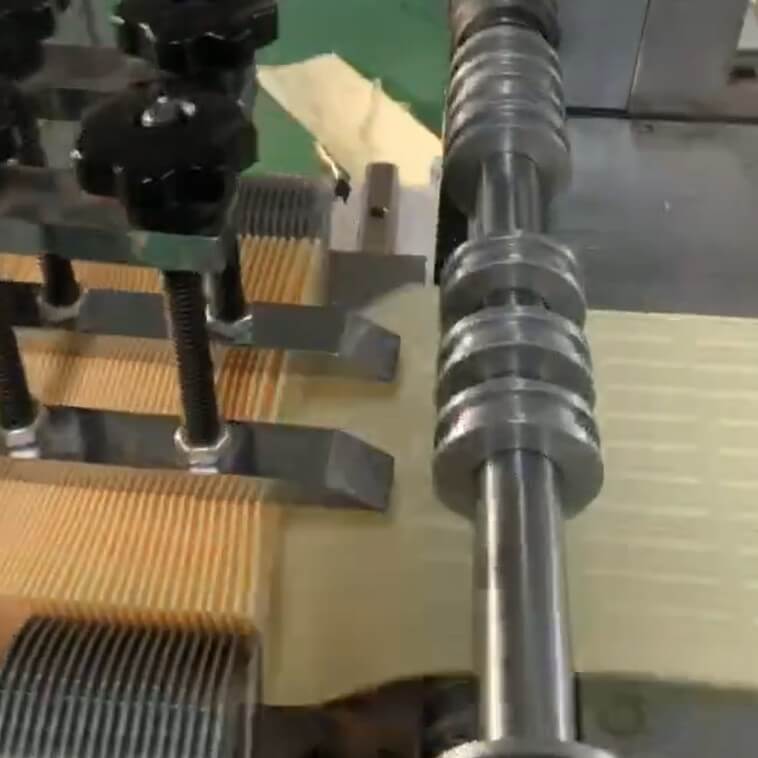

• Suspension indentation, suspension traction, the characteristics of the paper does notbreak, so that the paper indentation to S-shape to achieve the best filtering effect.

• There is an auxiliary trolley to replace the roller, one person can operate.

• Carbon steel srayer body structure is strong, stainless steel shield durable, and not easyto rust.

• Filter paper is automatically printed and counted on the origami machine.

• After folding, the fan cools down and the conveyor belt delivers the paper.

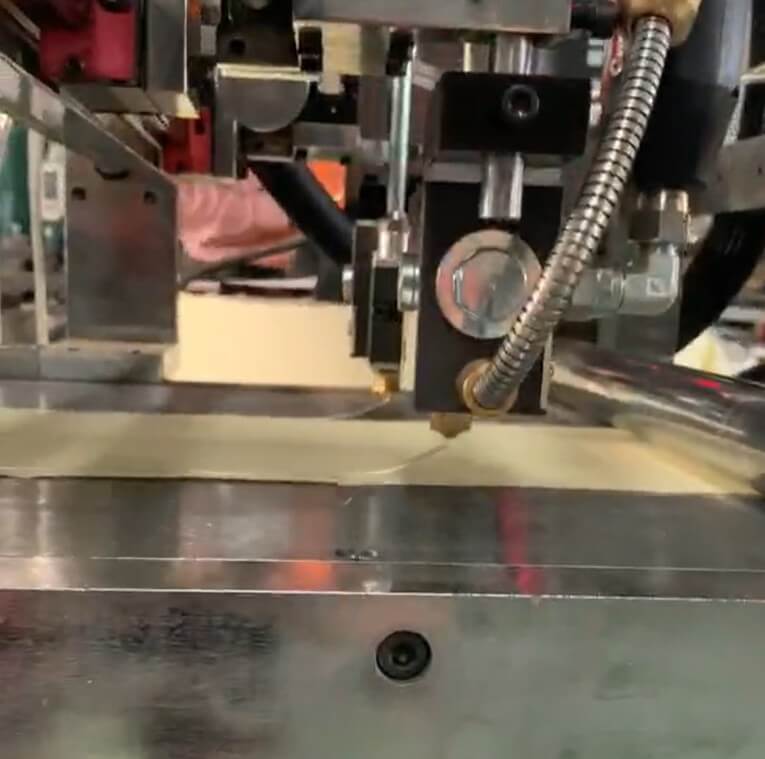

• The melt cylinder is coated with Teflon, which effectively prevents the hot melt glue fromcharring.

• The rubber valve adopts gas opening and gas closing to quickly break the rubber sensi-tive without leakage.

• The rubber hose adopts large aperture and high temperature resistant ltalian importedrubber hose, which is heated evenly and produces rubber smoothly.

PU Panel Air Filter Pleating Machine Technical Parameter
