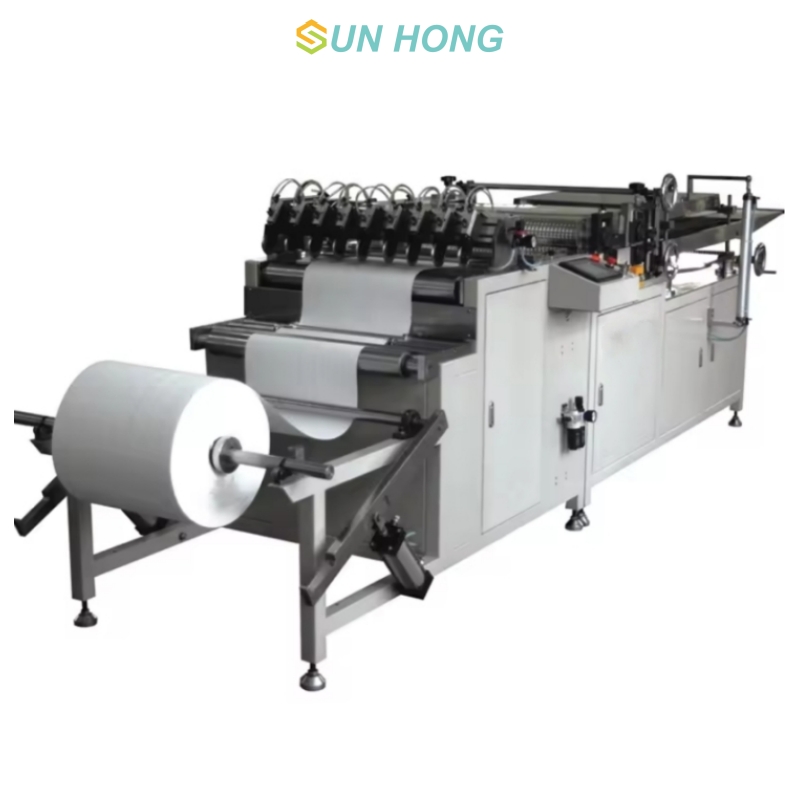

Automatic Filter Material Rotary Pleating Machine

Application for rotary pleating machine

This rotary pleating machine is used for pleating filter elements of automobile filters. This rotary pleating machine has high automation, high precision and stable performance. It can process filter materials into uniform and compact pleated structures. It is suitable for filter element manufacturing of products such as air filters, fuel filters and oil filters.

Advantages for rotary pleating machine

(1) The filter paper is pleated accurately through the rotary folding process, and the pleats are uniform and the structure is tight.

(2) The pleating efficiency is high and the pleating is stable, with good results.

(3) The rotary pleating machine has a high degree of automation (counting, pleating, preheating, forming, etc.)

Machine Components

1. Auto paper de-coiler

2. Pre-slitting device

3. Pre-heating device

4. Auto counter

5. Rollers marking mechanism

6. Rollers and collecting device

7. Post-forming and convey

Specifications:

1. Production capacity: 0-35m/min

2. Max width: 420mm/600mm/1000mm

3. Min width: 30mm

4. Max pleating height: 50mm

5. Min pleating height: 20mm

6. Rollers sizes can be customized

7. Temperature control: 0-300 degree

8. Main power: 12Kw

9. Air pressure: 0.6MPa

10. Power supply: 380V/50Hz

11. Machine weight: 1750kg

12. Machine size: 3600mm*1170mm*1200mm(L*W*H)
