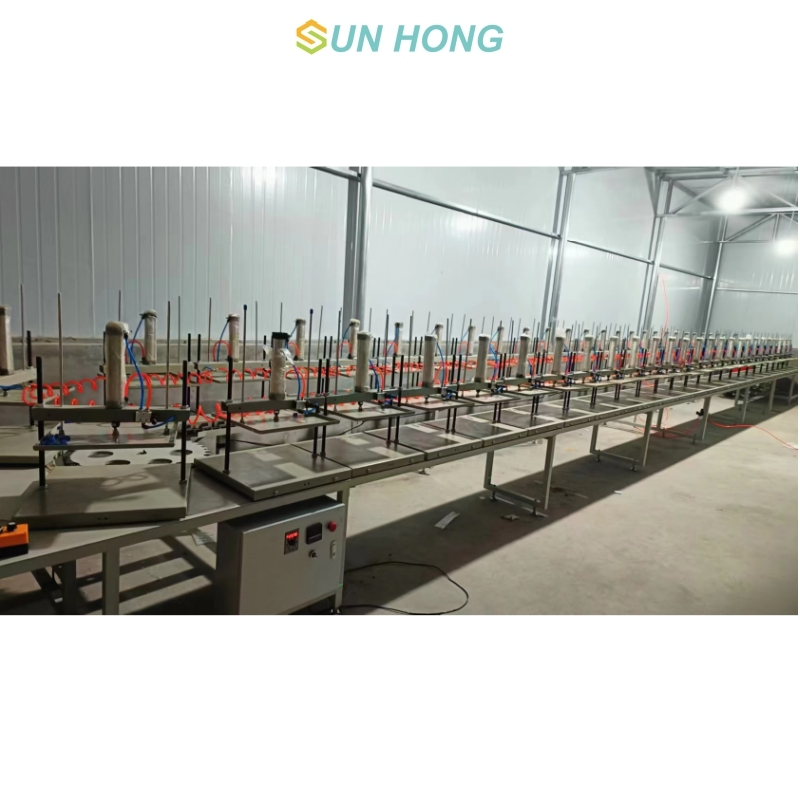

Car PU Air Filter Full Automatic Oven Curing Line

Car PU Air Filter Full Automatic Oven Curing Line

This equipment is suitable for U-shaped rotary drying of automobile air filter elements.

Main Component

Distribution panel, power supply slide, heating trolley, cylinder;

Variable frequency motor speed regulation, twin turbinereducer, thickened 50-pitch chain;

Spray machine frame, national standard channel steeldouble shaft cylinder control pressure plate lifting;

Guide post.

Main Features

1.Stepless speed regulation, 60 stations, each station can be heated independently, and cancontrol the temperature separately.

2.The device uses automatic and manual operation of the pressure plate fall and rise, two-way control.

3.The equipment adopts circulating work to improve production efficiency.

4.The bottom heating method is used to make PU adhesive foam more fully.

5.The tray is made of customized aluminum plate, the purpose is to conduct heat evenly.and the pressure plate is made of yellow spray iron plate, the purpose is large stiffnessand smooth.

6.During the operation of the pressure plate, there are guide columns on both sides tomake the pressure plate fall smoothly and balanced.

Technical Parameter
