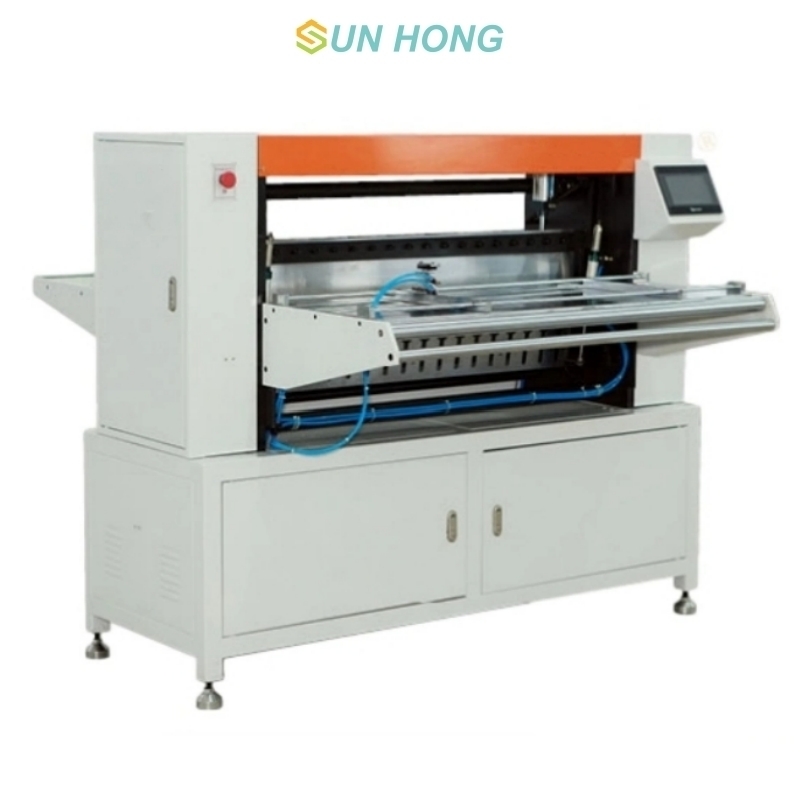

Automatic Filter Paper Knife Pleating Machine

Knife pleating machine application

As an efficient production equipment designed specifically for the filter industry, the automatic filter paper knife pleating machine can accurately fold filter paper, non woven fabrics, activated carbon and other materials, widely used in the production of fuel filters, automotive air filters, etc. With its high efficiency, versatility and excellent processing accuracy, it is an important equipment in the filter element production line. It increases production efficiency and finished product quality, significantly reduces production costs, ensures material processing quality and the smoothness of subsequent process flows, and is an ideal choice for filter manufacturers.

The working process of Sun Hong's fully automatic knife pleating machine is roughly filter paper conveying, folding and forming, heating and shaping, automatic cutting and stacking. The filter paper can be accurately folded and formed according to the settings, and the creases are guaranteed to be flat and non-rebound after shaping.

Knife pleating machine advantages

(1) Used for folding different materials to meet different production needs.

(2) The knife pleating machine uses precision control technology to accurately fold edges to ensure that the size of each fold is consistent.

(3) Special materials are made according to the material to enhance the material strength and folding stability.

Machine Components for Knife Pleating Machine

1. Auto paper de-coiler

2. Pre-slitter

3. Marker

4. Automatic counter

5. Filter paper pleating machine with pre-heating device and monitor;

Knife Pleating Machine Specifications

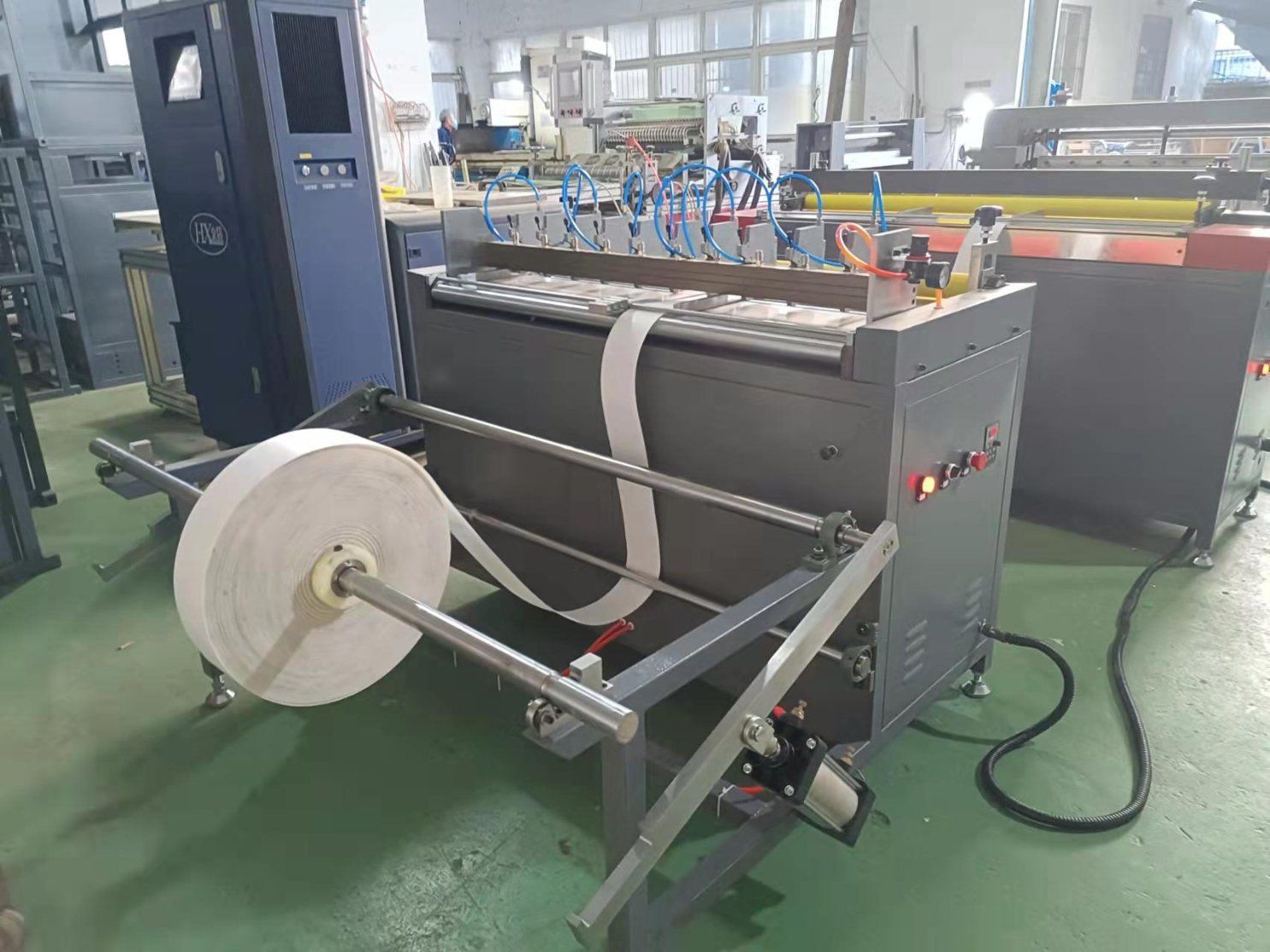

1. Pre-slitter

(1) Speed: 0.5m/min-12m/min (adjustable)

(2) Adjustable width: 30-1050mm

(3) Power supply: 380V/50Hz

(4) Motor Power: 0.75Kw

(5) Air pressure: 0.6MPa

(6) Machine weight: 350kg

(7) Machine size: 1500mm*1300mm*1100mm (L*W*H)

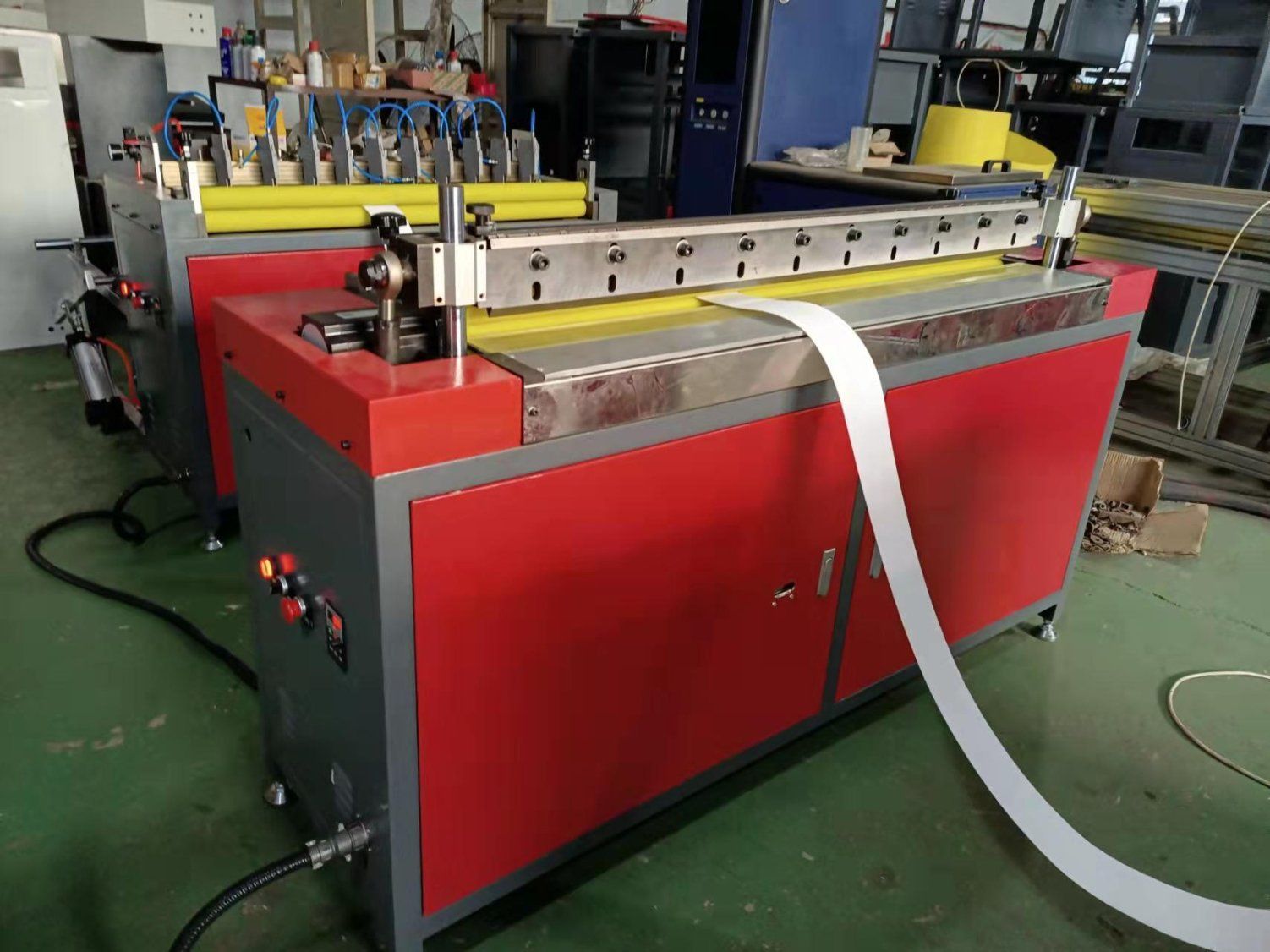

2. Marker

(1) Max marking width: 1050mm

(2) Adjustable marking distance: 8-55mm

(3) Power supply: 380V/50Hz

(4) Motor power: 1.5Kw

(5) Machine weight: 400kg

(6) Machine size: 1550mm*750mm*1100mm (L*W*H)

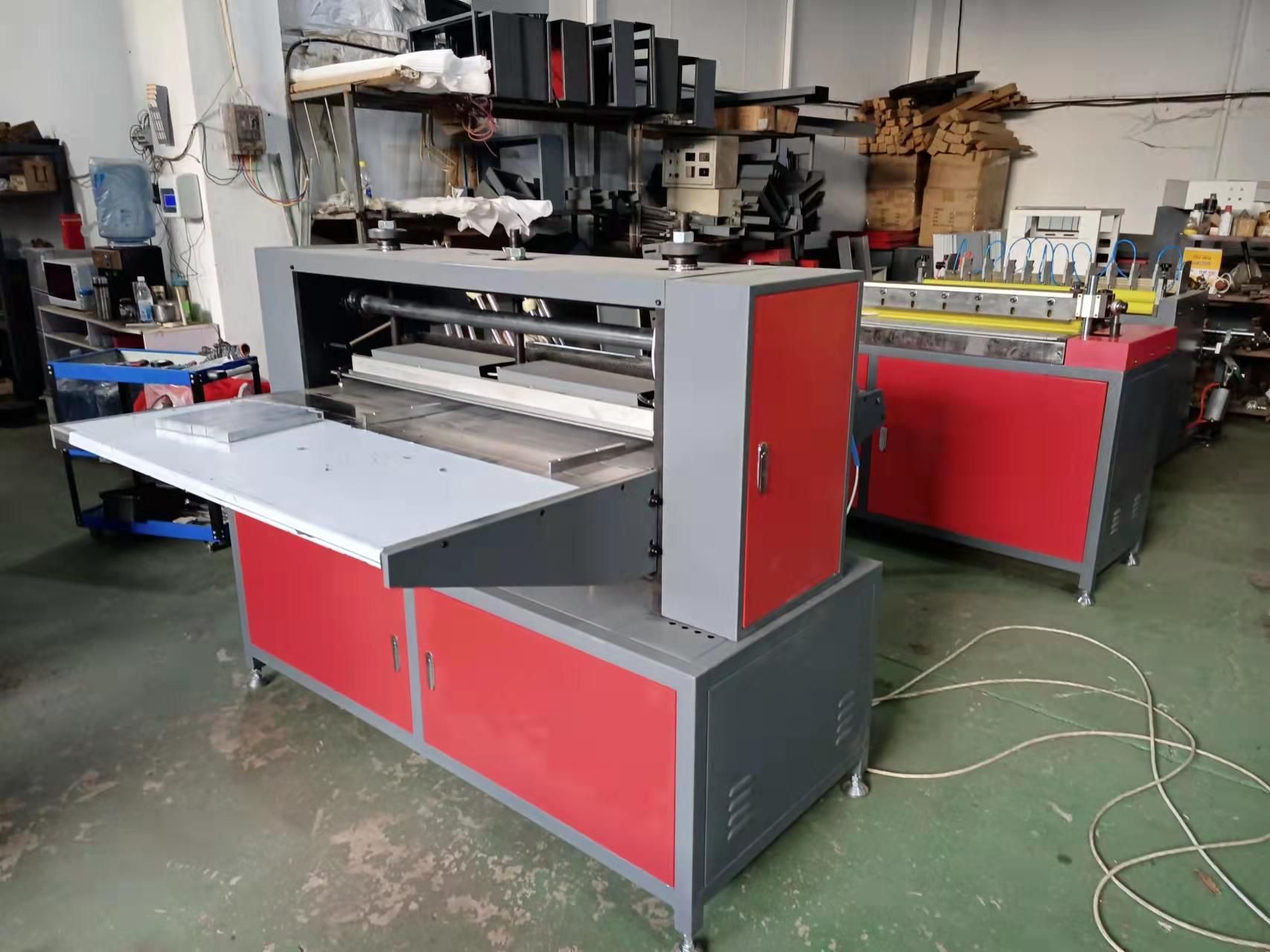

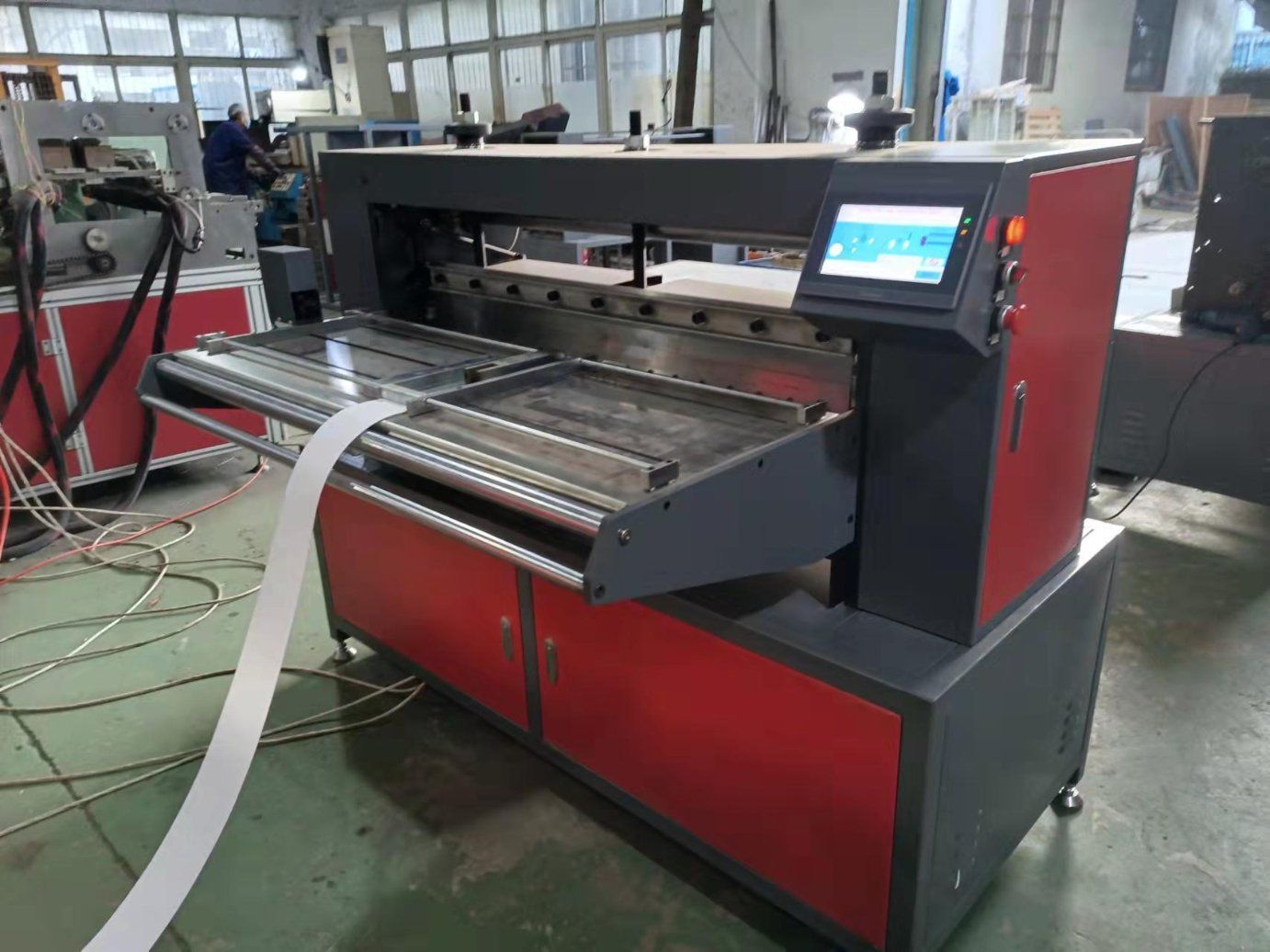

3. Pleating Mechanism

(2) Max width: 1050mm

(3) Adjustable height: 8-55mm

(4) Speed: 0-200 pleats/min (adjustable)

(5) Power supply: 380V/50Hz

(6) Motor power: 1.1Kw

(7) Heating power: 4Kw

(8) Heating temperature: 0-200 degree

(9) Air pressure: 0.6Mpa

(10) Machine weight: 650kg

(11) Machine size: 1670mm*1720mm*1240mm(L*W*H)
