Double Use Spiral Center Tube Making Machine
    • 1/4

Double Use Spiral Center Tube Making Machine

share
WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr

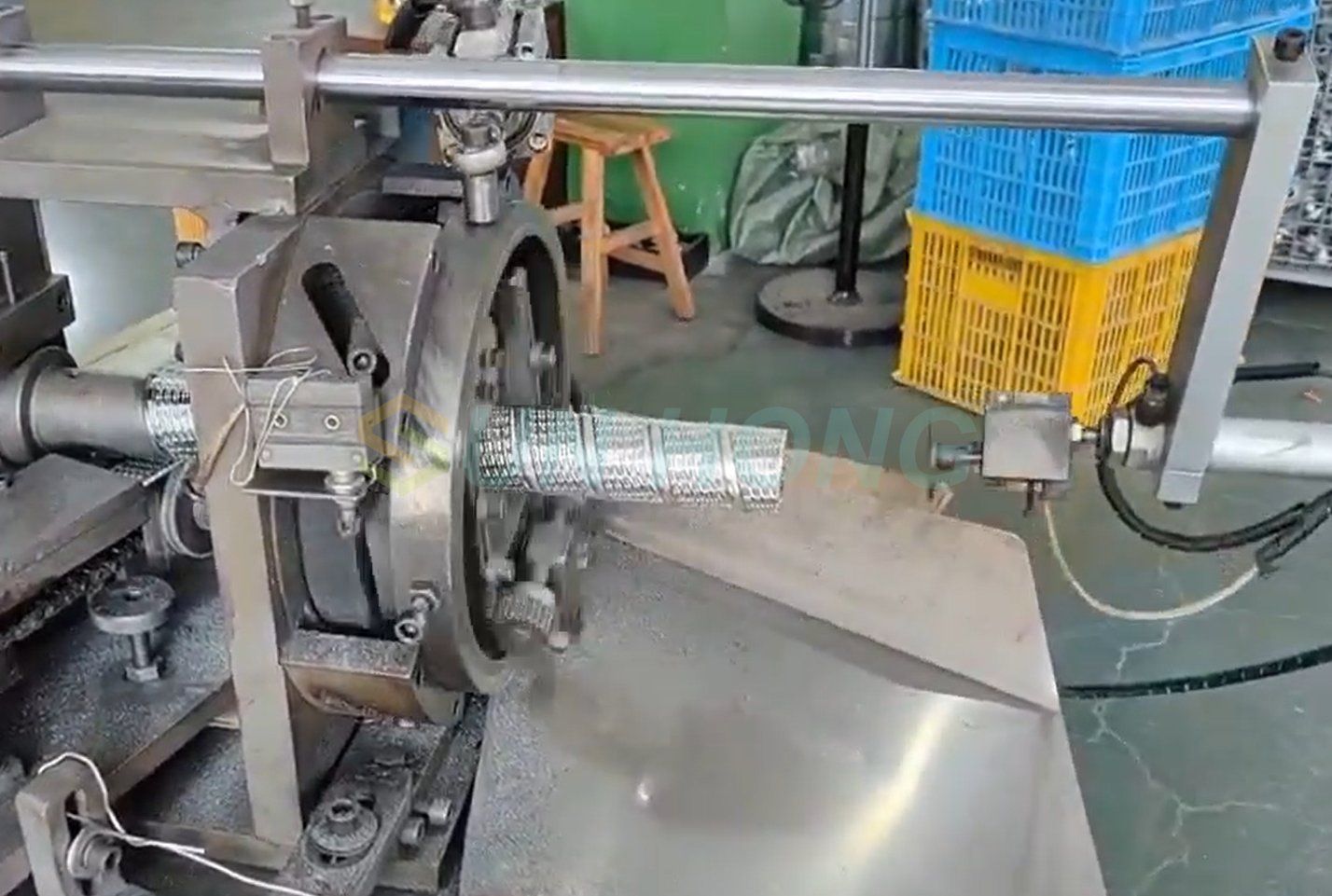

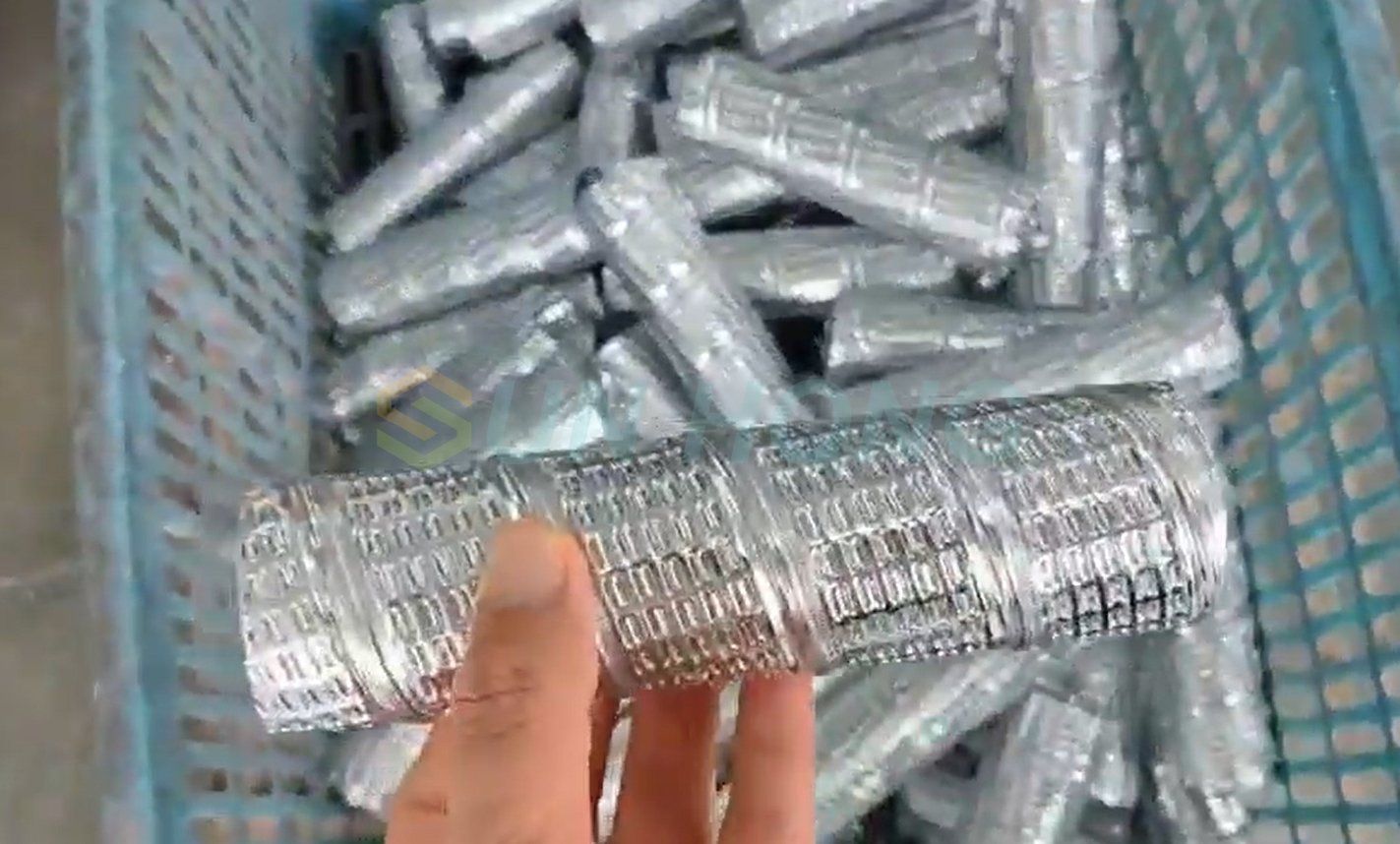

The spiral tube making machine is used to manufacture the center tube for the oil, fuel and hydraulic filters. It also can produce the perforated or louvered holes.
Application Spin on filter making
Origin China
Brand Sun Hong
Power 380V/50Hz
Model SHQY-30-350-II
+86 139 5134 9332
Consult Now
Product Details

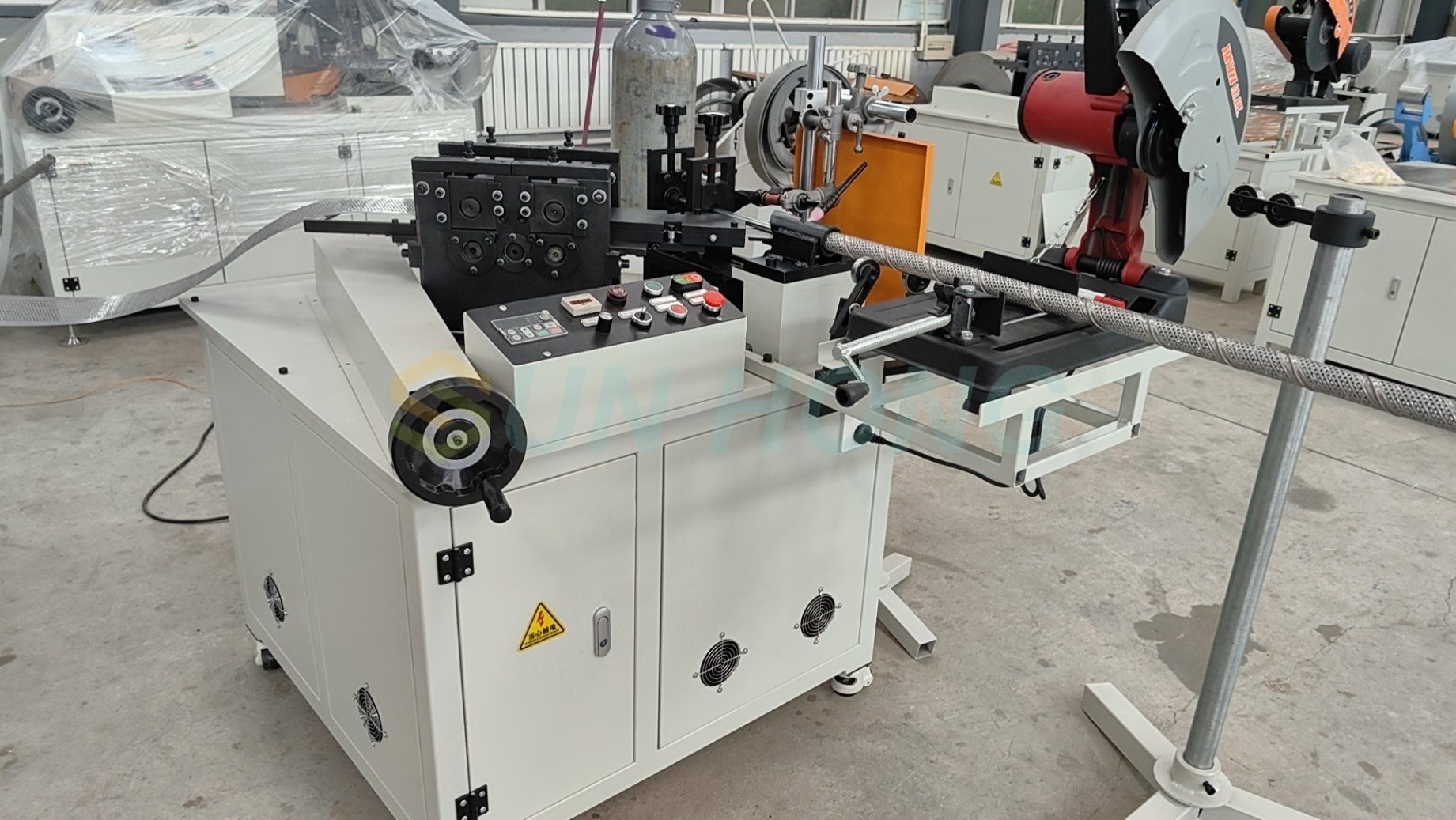

Double Use Spiral Center Tube Making Machine General Description

sun hong offers advanced double use spiral center tube making machines is used to manufacture the center tube for the oil, fuel and hydraulic filters. It can produce the perforated or louvered holes, High automation, durable design.


Components for Double Use Spiral Center Tube Making Machine

1. De-coiler

2. Perforation device

3. Tube making mechanism


Technical Specifications for Double Use Spiral Center Tube Making

Production efficiency25-40pcs/min
Diameter range30-75mm/55-135mm/90-350mm or customized
Tube lengthcut as set
Steel strip thickness0.25-0.35mm/0.4-0.6mm
Steel strip width45mm or customized
Steel strip typetin-plated or galvanized steel
Motor power3KW
Power supply380V/50Hz
Air pressure0.6Mpa
Machine weight800kg
Machine size1600mm*800mm*1250mm(L*W*H)


double use spiral center tube making machine double use spiral center tube making machine double use spiral center tube making machine
