Ⅰ.Scope of Application

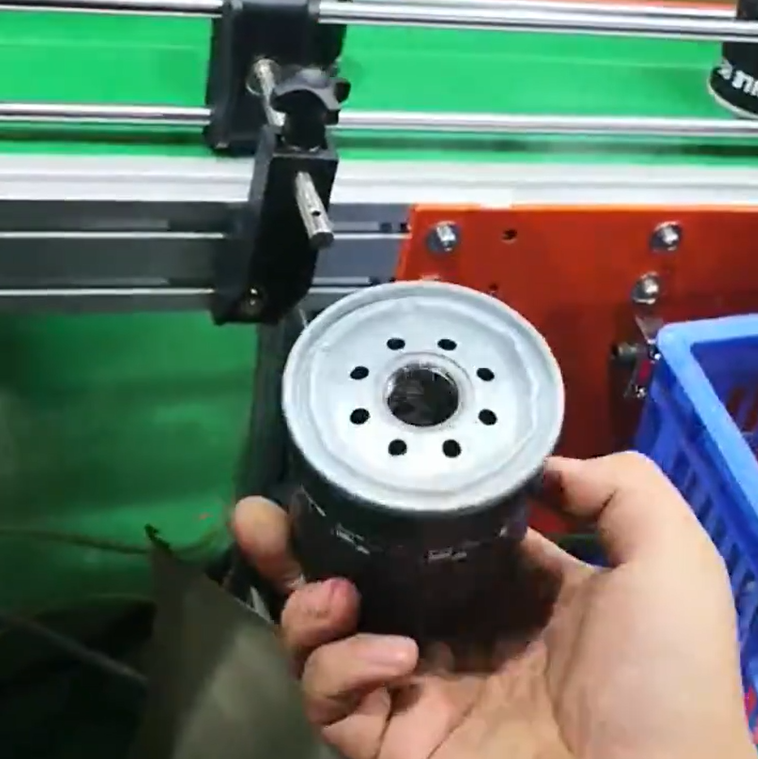

Fully automatic sealing process for the assembly of spin-on oil filters and diesel filters.
Ⅱ.Equipment Precision
1. Under the condition that the indenter guarantees the garden degree, the shape of the back side of the sealing can is within 0-0.05mm of the same garden degree error.
2.1,3 and 2,4 rollers and indenter position adjustment position accuracy 0.01mm adjustable, measuring tool: plug ruler.
3. In the case of normal product process design, after sealing the cans and sealing the cans before the plate climbing height of 0.1-0.2mm at most not more than 0.3mm.
Ⅲ.Equipment Features
1. This machine is a machine, electricity, gas integration equipment, compact, easy to operate, can automatically complete a work cycle.
2. The same power drives two sets of synchronous wheels with different numbers of teeth, and the clutch is controlled by a cylinder to open and close the fork to form a differential speed sealing cans.
3. The differential speed after clutching makes two cams move to complete the feeding track of the first roller and the second roller, until the clutch returns to the position to complete the can sealing process.
4. This machine adopts Japan imported pneumatic components, servo motor precision feeding, to ensure high quality and high efficiency to complete the sealing operation.
5. The sealing rollers are made of DV53 material imported from Japan, which is ground and processed after vacuum burst fire after turning, and the surface is processed by TD treatment, which has high hardness and good abrasion resistance to increase the service life.

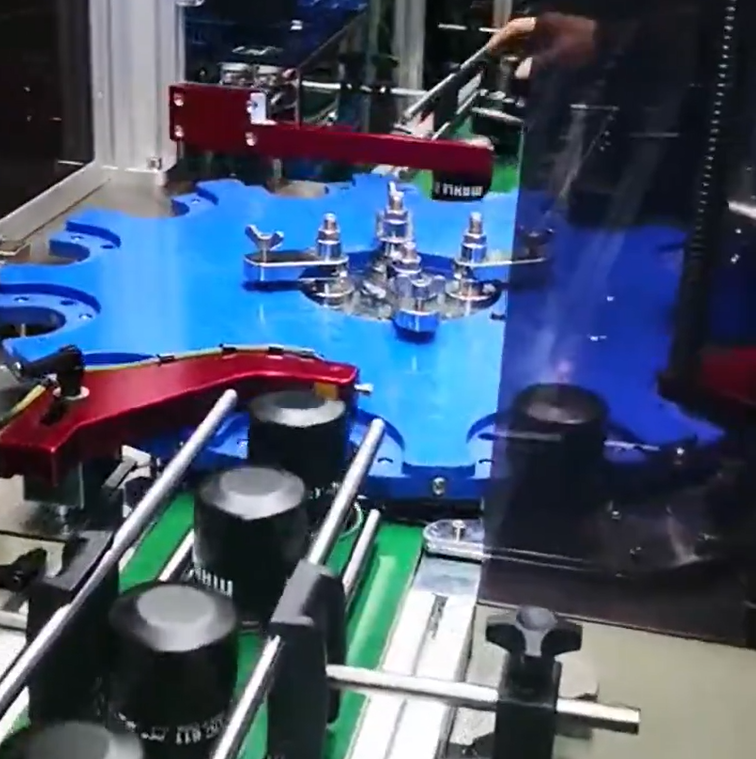

6.This machine is a full-automatic high-speed sealing machine, the whole process of feeding, sealing and discharging is automatic cycle, without manual operation.
7. The equipment is equipped with spring overturning detection device as standard, and pneumatic compression detection device is installed in the first two stations of the sealing station. Detecting spring compression height abnormality, compression is not up to the specified height, indicating that the spring is overturned.
8. Spring tipping detection device, touch screen a key to open the automatic adjustment of product height, can be more different product height through the stepping motor, automatically adjust the initial detection position of the cylinder.
9. No crease, no wavy edges, no scuffs, no scratches on the cover plate during the sealing process.
