The air filter oven curing machine is mainly suitable for foaming PU filter, air filter filter element dryer.
Application Truck Air Filter Making
Origin China
Brand Sun Hong
Power 380V/50Hz
Model SHCM-16
+86 139 5134 9332
Consult Now
Product Details

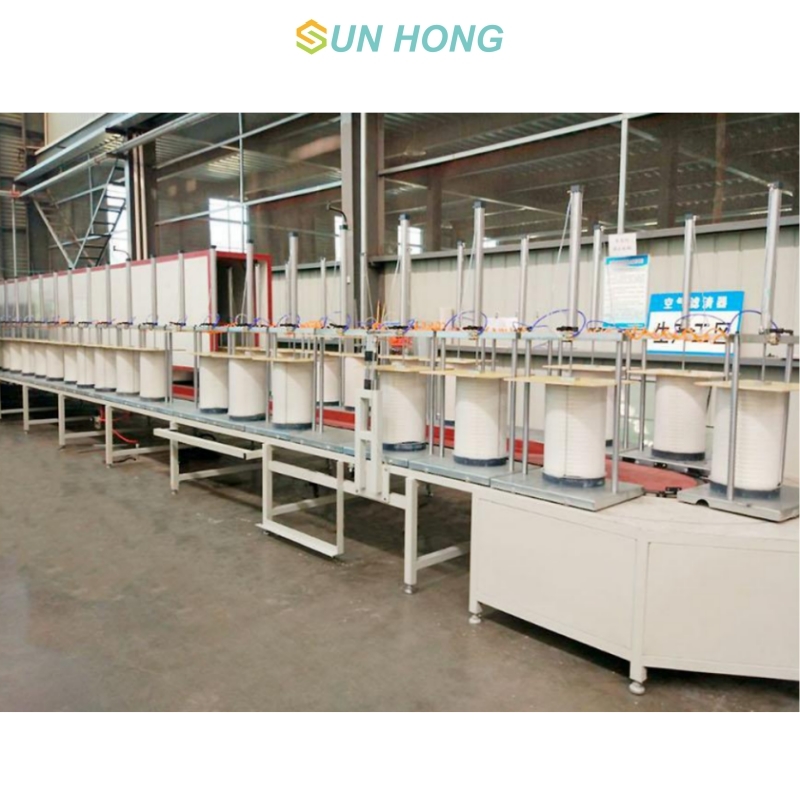

SHCM-16 Full Automatic 16-station Air Filter Rotary Drying Line


The main purpose is to heat and cure the PU cartridge after glue injection, so that it has a short demoulding time and does not need to be moved and poured, which is the ideal equipment for matching with the PU glue machine. The use is mainly for the curing of PU glue cartridge, transfer heat baking, in order to speed up the time of mould release, reduce the amount of handling, so as to improve efficiency.


Technical Parameter


Production capacity6 pieces/minute
Product diameter≤400 mm
Product height≦650mm
Number of stations16 stations
Heating power16KW
Motor power1.5KW
Power supply voltage380V/50HZ
Working air pressure0.6MPa
Overall dimensions2800*2000*1400mm
Machine weight2000kg
