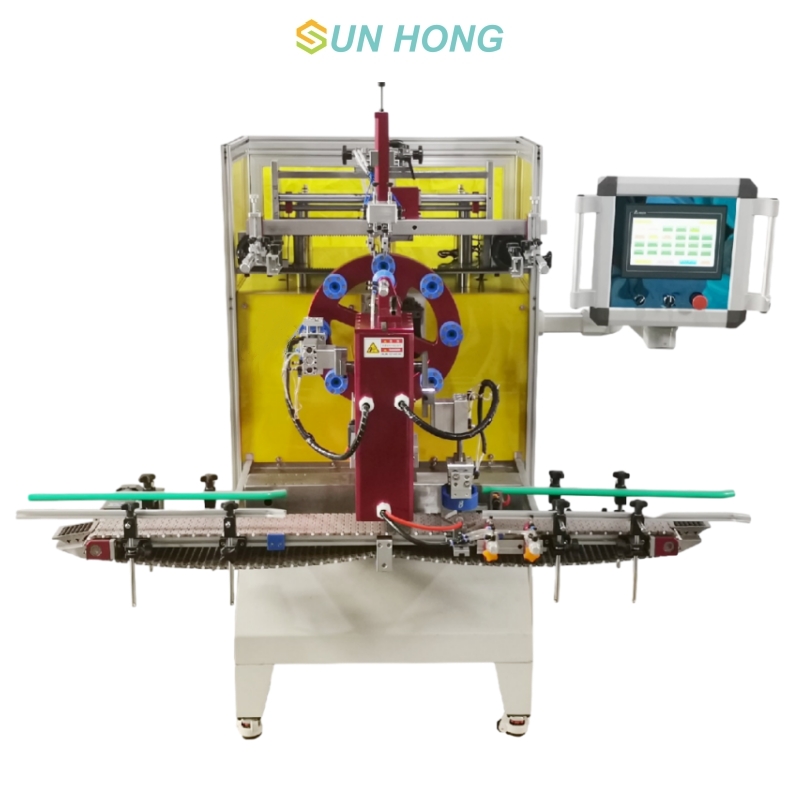

The silk printing machine is used to print the shell of the spin-on filters.
Application Spin on filter making
Origin China
Brand Sun Hong
Power 380V/50Hz
Model SHFA-3000
+86 139 5134 9332
Consult Now
Product Details

Ⅰ.Scope of Application

1. Screen printing of finished spin-on filters.

2.Screen printing of single shell before can sealing.


Ⅱ.Equipment Features

1. Adopt operation control system to drive five sets of servo motors, through the virtual cam for precise positioning, to achieve simple and easy to get started, high speed, stable printing.

2. Designed screen printing board, leather knife fast wipe, fast replacement function, very practical.

3. The system updates the formula adjustment function, very practical, can achieve the rapid change of type demand.

4. This machine is a fully automatic screen printing machine, loading servo mechanical hand material, printing, down the servo mechanical hand material the whole process is an automatic cycle, without manual operation.

5. Through the cylinder parts blocking material will be sent to the product in order to feed position, feeding with the suction cups on the hand with the service machinery will grab the product feeding to the carousel positioning tooling, positioning tooling on the strong suction iron will be the positioning of the product suction, the carousel rotates to the printing station for servo printing, printing the carousel turn to the dow

nstream position, downstream servo machinery with suction cups on the hand to grab the product will grab the product downstream to the conveyor line, until the output conveyor line finished product output. Output the finished product on the conveyor line.


Ⅲ.Technical Parameter

Production capacity1-40pcs/min
Product diameter64-140mm
Product height40~350mm
Conveyor belt height from the ground750±50mm, adjustable
Power of the whole machine4kw
Working air pressure0.6 MPa
Voltage220V/50HZ
Machine weight1400kg
Overall dimension2200*1400*2400mm
