Ⅰ.Scope of Application

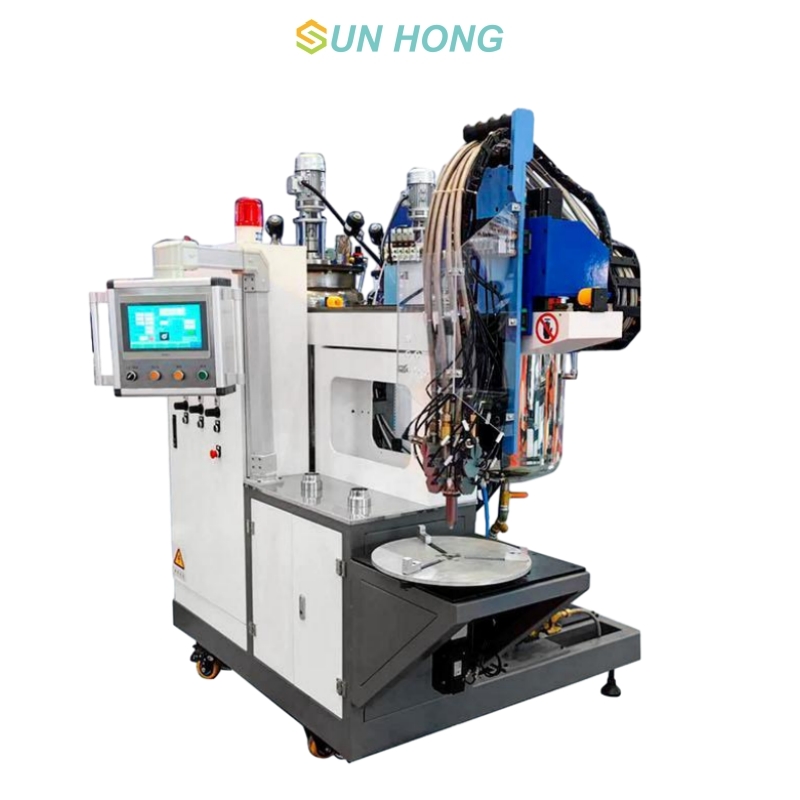

It is a two-component or multi-component high-performance semi/full-automatic mixing and dosing system, which can be applied to round large air filter PU injection, and can complete both ends of the main core at the same time or the main and peace of mind production at the same time. It is capable of accurately processing liquid, medium and high viscosity Pu, Expoy, Silicon and other polymerisation substances.
Ⅱ.Equipment Features
1. Mixing system adopts environmentally friendly high-pressure water cleaning device
2. Precision circulation valve controlled by sensor pneumatic and hydrodynamic principle.
3. Make the raw materials always maintain a good state of circulation to be used.
4. Component multi-stage spraying can be carried out directly
5. Electronic control of the speed of the mixing head, the mixing head adopts a special design to help
Helps the raw materials more evenly mixed
6. Drying of the mixing head by means of a blower-type pinhole injection valve.
7. The "Shutt-of" nozzle locking system, controlled by an axially movable drive shaft, is drip-proof and maintenance-free.
Ⅲ.Main Parameter
| Mould diameter | 100~410mm |
| Driving method | Servo motor/gear, rack and pinion drive |
| XYZ Repeatability | +0.1mm |
| Air source | 5-7bar standard instrument air dew point temperature <5°C oil-free (max. 30 mg/m'), dust-free, particle size >5um |
| Water source | ~3~7bar, PH value 7-9, no salt, non-recycled water consumption of about 12L/min |
| Dispensing temperature control | 18~25°c |
| Electricity Source | AC3x380V,50/60HZ,45A |
| Machine Weight | 1600kg |
| Overall Dimension | 3400x2600x2200mm(LxWxH) |
