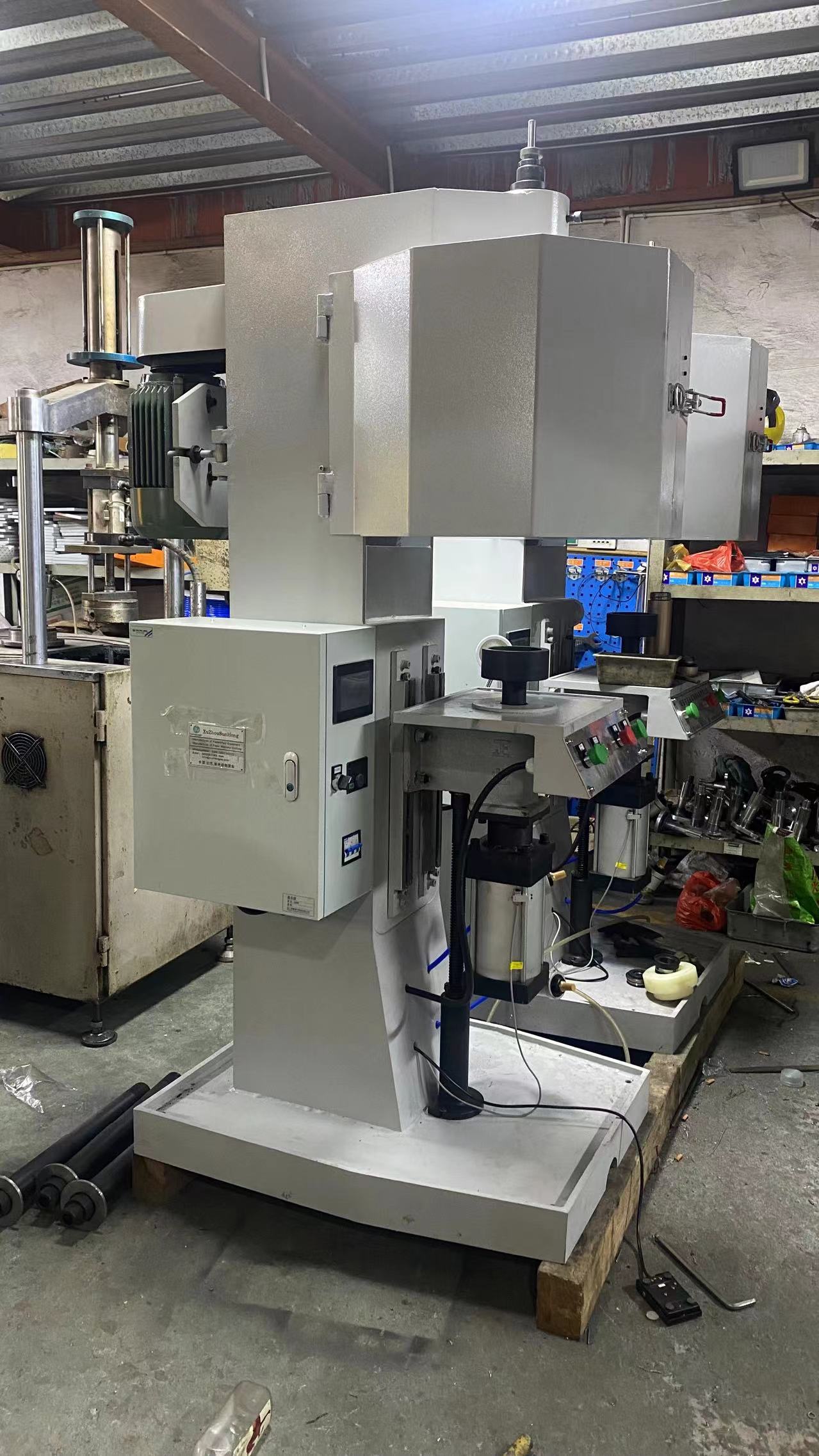

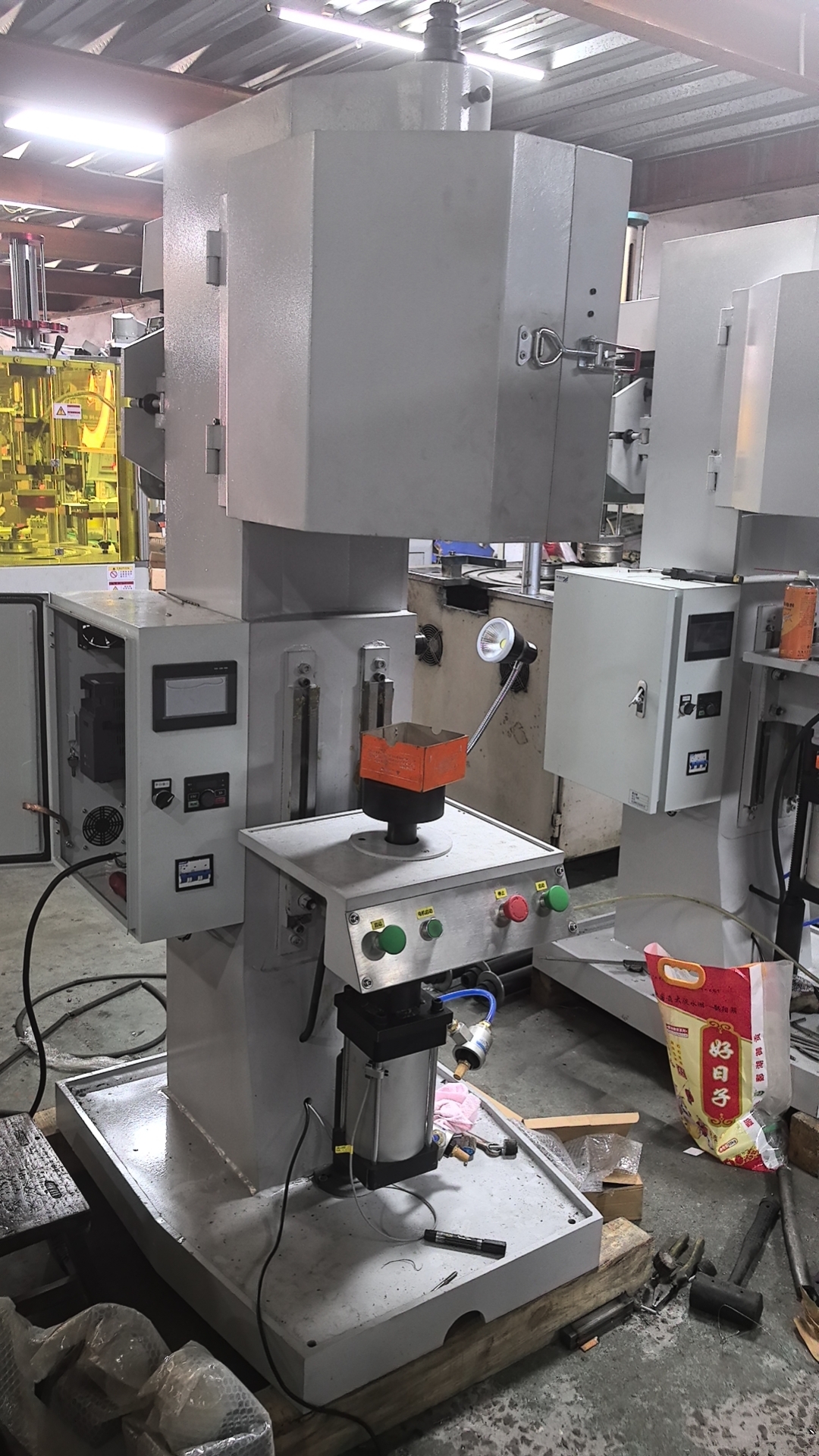

Manual Seaming Machine for Spin on Filter

The Seaming machine is used for the fully automatic sealing process of spin-on oil filter and diesel filter assembly.
Application Spin on filter making
Origin China
Brand Sun Hong
Power 380V/50Hz
Model SHMS-200
+86 139 5134 9332
Consult Now
Product Details

Ⅰ. Application

The seaming machine adopts the combined control of electricity and gas, and the feeding movement of the first roller (two) and the second roller (two) is completed by the movement of two cams. The feeding movement of cam roller is completed by the cylinder according to the predetermined program. The material used for the can sealing roller is Cr12MoV. After quenching, it has high hardness and good grindability, which increases the service life. This machine is used for sealing the shell of rotary machine and diesel filter with the sealing fixing plate.



Ⅱ. Equipment Installation

1. After unpacking the machine, adjust the installation position of hoisting to the horizontal position and fix it with anchor bolts. The machine should be installed in a place with good ventilation and no direct sunlight.

2. Connect the equipment to the circuit with 380V, 50Hz and above 4000 watts. The wire section shall be greater than 2.5mm square. After the power is turned on, the nose is rotated from left to right.

For safety, the equipment shall be protected by grounding wire.


Ⅲ. Technical Parameter

Production capacity

12 cans / min

Sealing diameter

Dia 50 - Dia 130mm

Height of sealing part assembly

50-300mm

Applicable steel plate thickness

0.5-0.8mm

Motor power

2.2kw

Working pressure

0.6MPa

Voltage

380V / 50Hz
