Ⅰ.Scope of Application
Used for the automatic injection of anaerobic adhesive before the sealing of spin-on oil filters and diesel filters.
Ⅱ.Equipment Features

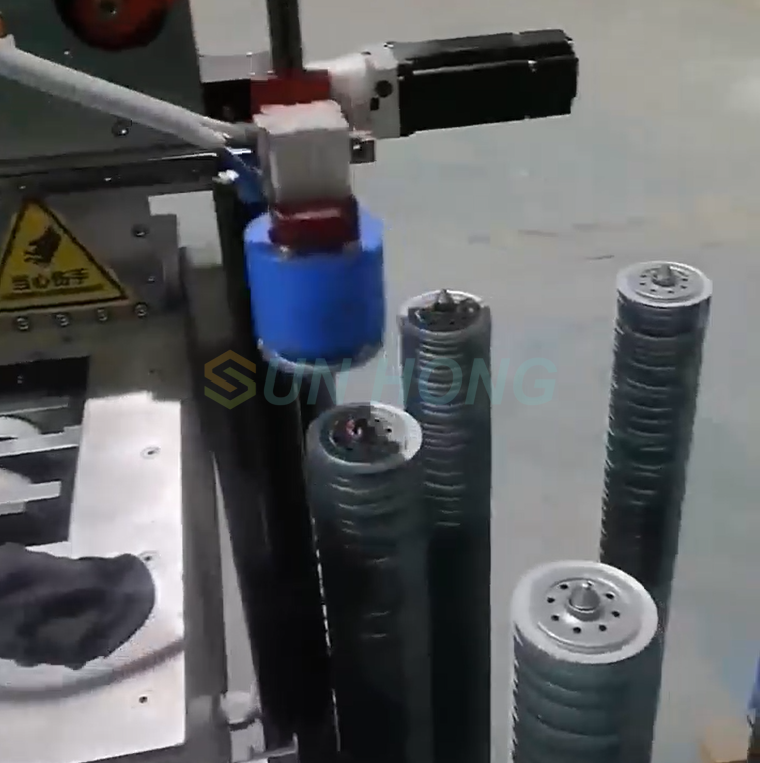

1. Eight stations turntable material stringing mechanism, the robot grabs a cover plate from the stringing mechanism.
2. Through the sequential action of the sorting cylinder, a series of actions such as splitting,
top material, glue injection, etc. are completed to make them coordinated.

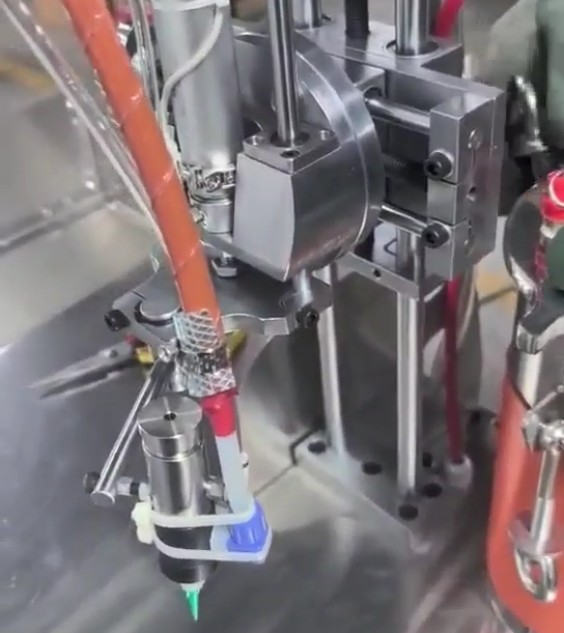

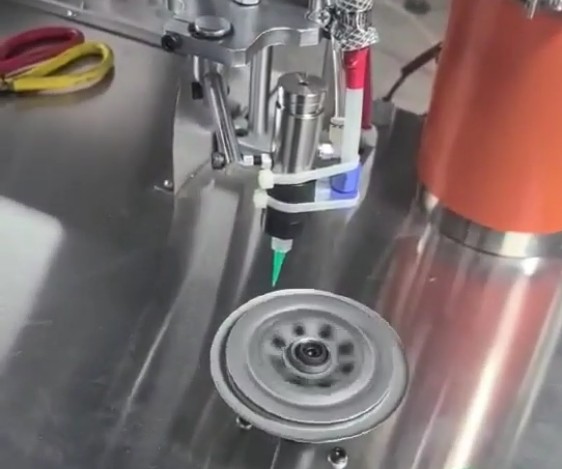

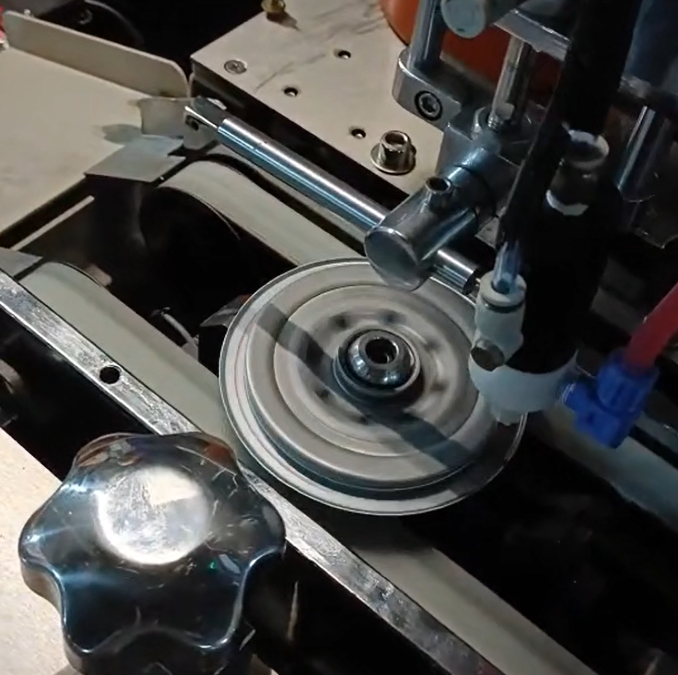

3. This machine adopts imported solenoid valve control, stepping motor to rotate the cover plate, which can guarantee the uniformity of product glue injection volume and non-stick in the process of glue injection.
4. The loading mechanism is designed as a robotic gripping assembly.
Ⅲ. Main Parameter
Capacity | 1-50pcs/min |
End cap diameter | 78-160mm |
Maximum number of work pieces to be placed | 680 pieces/time |
Conveyor belt height from the ground | 1000±50mm adjustable |

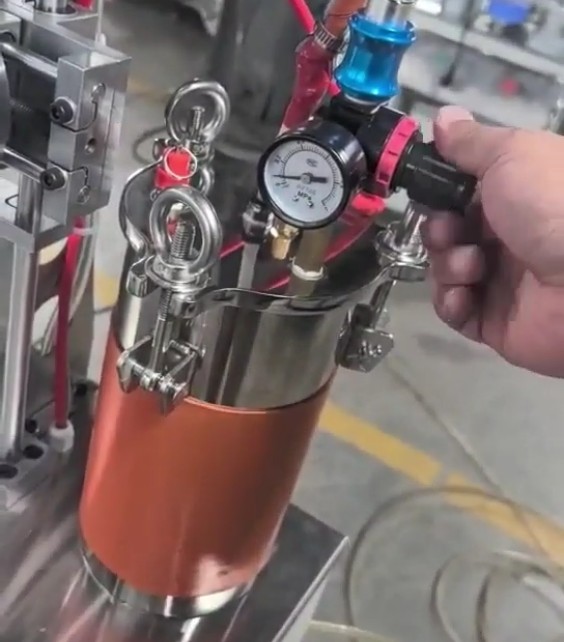

Glue type | Anaerobic adhesive, single-component PVC glue |
Viscosity of glue | ≤45000CP |
Power of the whole machine | 1.5kw |
Working air pressure | 0.6MPa |
Voltage | 220V/50Hz |
Weight | 300kg |
Dimension | 1600*1600*1700(mm*mm*mm) |
